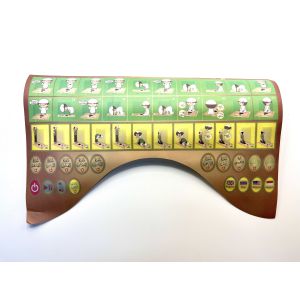

Customized Automatic Printing Digital Graphic Overlay With REACH Certification

  • 1
  • 2

Brand Name : GC Technology

Model Number : 0709-003

Certification : ISO9001,SGS,ROHS,REACH,UL

Place of Origin : DongGuan of China

MOQ : 100 pcs

Price : communication

Payment Terms : Western Union, T/T,PAYPAL

Supply Ability : 90000 +pcs +a Month

Delivery Time : 4-5 days for Samples making ;10-15 days for Batch goods

Packaging Details : PE bags first and Foam in Carton and etc

Material : Polyester or Polycarbonate or others

Color : Pantone, RAL CMYK ,RGB

Adhesive : 3M adheisve or others

total thickness : 0.35MM

PN : Membrane switch ,Membrane keypad ,keyboard ,overlay

circuit options : silver flex circuit

Contact Now


Custom Automatic Printing Mebrane Graphic Overlay With REACH Certification


An automatic printing membrane graphic overlay is a thin film user interface technology that is used to display symbols, artwork, and instructions on electronic devices. It is typically made of plastic films such as polycarbonate or polyester and is overlaid on top of the device's human-machine interface electronics. The graphic overlay serves as the main touch point for the user and provides important information on how to use the device [2].
Advantages of Automatic Printing Membrane Graphic Overlays:

  • Rapid Prototyping: Some companies offer a 4-step rapid prototyping process for membrane switches, graphic overlays, and labels. This process allows for quick production of fully functional parts and components, saving time and money [1].
  • Digital Printing: Digital printing is a manufacturing technique used for complex designs with gradient effects, large numbers of colors, or small production volumes. It is a cost-effective method for producing custom graphic overlays and labels on substrates such as polycarbonate and PET [2].
  • Screen Printing: Screen printing is another method used for producing large quantities of custom graphic overlays and labels. It is known for its high quality and durability, making it suitable for long-term use [2].
  • Mounting Adhesives: Most graphic overlays come with mounting adhesives that are laminated to the back of the overlay. This makes it easy to apply the graphic to the device. Selecting the correct adhesive is important, and reputable companies often use 3M adhesives for their quality and reliability


Product Descriptions :

Overlay material ---For front or face overlay
Polyester Polycarbonate

1 Highly versatile for embossing
2 Highly resistant for chemicals
3 Better durability
4 For internal and external use

1 wide range of the surface finishes and thicknesses
2 More cost-effective
3 For internal and external use
4 many Lexan label choose
Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications
Pedestal embossing Rim embossing Pillow embossing Dim embossing
Windows or LCD --- For display functions
Printed colors windows such like red ,black and so on Transparent finishes windows
Keys
Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds Non-tactile keys: printed silver spot on the circuit
LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others
EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs
Cables --- is extension of circuit and communication with your device
Screen printing conductive silver cable Copper plated cable /Polyimide or FPC PCB cable
Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector
Shielding --- For protection function
Gasket seal/Waterproof :protect the conductors against from the humidity and splashes EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect
Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others
Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA
Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL
Standard Tolerances :+/-0.2MM








Common membrane keypad structure choose :


Customized Automatic Printing Digital Graphic Overlay With REACH Certification




Other photo show :
Customized Automatic Printing Digital Graphic Overlay With REACH CertificationCustomized Automatic Printing Digital Graphic Overlay With REACH CertificationCustomized Automatic Printing Digital Graphic Overlay With REACH CertificationCustomized Automatic Printing Digital Graphic Overlay With REACH Certification












How to order

• Send us the drawing ,spec or photo about your product or fill our quotation information table . Get Latest Quote
• Confirm order details and approved our artwork before sample ,confirm our sample before mass goods and Order PI will be sent
• we will send our artwork for your confirm within 3 days before sample making ,and sample lead time is 4-5 business days As usual .
mass goods :as common ,it is 7-10 business days ,which is based on our produce department schedule and product craft and order quantity




Our Services :
1 Reply your inquiry within 24 working hours

2 Customize design is available ,OEM and ODM are welcome

3 Experienced Staffs answer your all question in professional and fluent English

4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs

5 Good service ,High quality ,test all goods and short lead time supply

6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request

7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
